6000 mm Dust Collector Fiberglass Filter Bag For Multi-fuel boiler
Fiberglass Filter Bag Introduction:
Max continuous operating temperature is 500F, can reach higher temperatures with certain finishes. Contact an expert for more information. Fiberglass is excellent for moist heat applications. Fiberglass is not a good option for mineral acid applications unless a chemical or acid resistant finish is applied to the bags. Fiberglass is a fair option against abrasion and alkalis and is excellent against applications with more than 15% oxygen content. The energy absorption and filtration properties are fair. The fiberglass filter bags are sensitive to bag-to-cage fit. Because of the finishes that are put on fiberglass.
Fiberglass Filter Bag Advantage:
Our fiberglass filter bags are ideal for gas filtration applications. It can be used to meet the most demanding particle filtration applications. The filter bag has excellent acid and alkali resistance, wear resistance and high tensile strength. It can be used in a variety of complex situations and harsh environmental conditions. It can also be combined with other different materials to achieve the best gas composition filtering effect. We can provide you products with different specifications, and we accept customized requirements. If you are interested, please feel free to contact us directly!
Fiberglass Filter Bag Applicant:
Multi-fuel boiler, cement, iron, steel, metal …
Fiberglass Filter Bag Specifications
| Name | XLFG350 | XLFG502 | XLFG801 |
| Ingredients | Fiber | E-Fiberglass | E-Fiberglass | E-Fiberglass |
| Loss on ignition | % | 10-13 | 10-13 | 10-13 |
| Weight | g/m³ | 350±15 | 510±15 | 780±15 |
| Thickness | mm | 0.35±0.03 | 0.5±0.2 | 1.0±0.2 |
| Weave | | 1/3 twill | 1/3 twill | double twill |
| Air Permeability | cm³/c㎡/s.127pa | 4-7 | 3-6 | 3-5 |
| Tensile Breaking Strength(N/2.5cm) | Warp | ≥1300 | ≥2100 | ≥2300 |
| Weft | ≥800 | ≥1300 | ≥1800 |
| Maximum shrink of 90 mins | Temperature(℃) | 260 | 260 | 260 |
| % | ≤1 | ≤1 | ≤1 |
Service
Temperature(℃) | Continuous℃ | 240 | 240 | 240 |
| Instant℃ | 260 | 260 | 260 |
| Velocity of filtration | m/min | ＜0.6 | ＜0.7 | ＜1.0 |
| Finishing | Acid Resistance/PTFE membrane |
Production Process:
There are 19 working produres. Every product from Sinft had undergone detailed perfection.
Scientific surface treatment like heat setting, dipping, singeing, calendering and coating can signigicantly prevent the
fabric from shrinking,remove surface batting, imrove filtration effectiveness and increase heat resistant.
Package:
The dust filter bags are packed in PP woven bags or according to your requirements.
Company Introduction:
Hebei Sinft filter Co.,Ltd is a high-tech enterprise group integrating R&D, production and sales of dust
collector filter bags and filter cages. We are founded in 2007 and located in Shijiazhuang.
We own the most advanced complete sets of production equipment, the high-speed acupuncture production
lines, heat-setting and high temperature after-treatmentunits, laminating units, sewing equipment, and hanging
production lines.
Daily production capacity of filter bag is more than 7000 pcs, the scale of production and equipment are at the
forefront of the industry.
Sinft Team:
We often attend international and domestic exhibitions. The company will organize team building
activities regularly. We are not only colleagues, but also family members.
Sinft Certificate:
We have ISO 9001 Certifications. Our products are used in many places at home and abroad, such as
power plants in North America, cement plants in Europe which all Won high praise.
More details, pls feel free to contact us, Thanks
| Does not perform well with moist heat |
Product Tags:
|
|

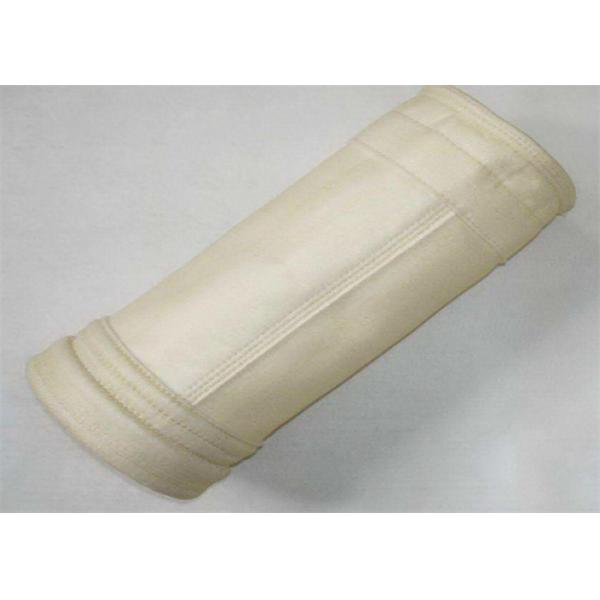

6000mm Industrial Fiberglass Filter Bag Images
|
